CTA12 PRO
HOMESoffit Mount MonitorDETAILS

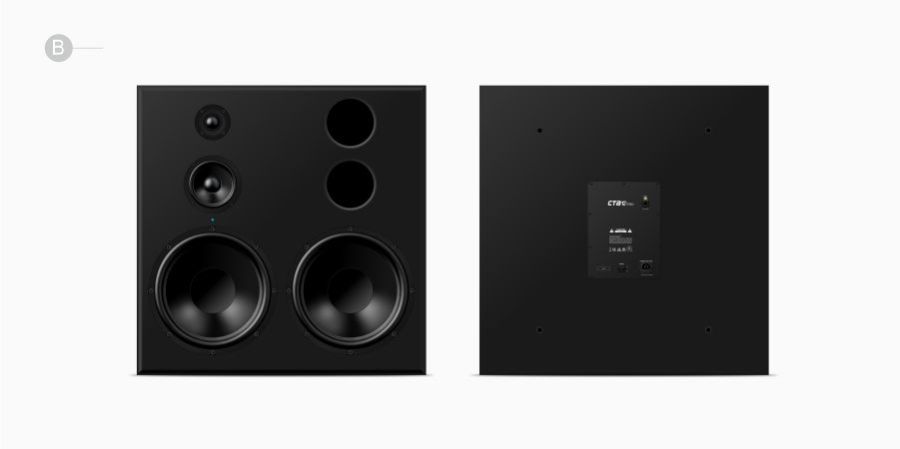

CTA12 PRO
Soffit Mount Studio Monitor
With painstaking attention to detail, soffit mount studio monitors are meticulously engineered to achieve an exceptionally flat frequency response spanning the entire audible spectrum. Employing state-of-the-art technologies including top-tier drivers, finely tuned enclosures, and advanced amplification systems, these monitors guarantee the faithful reproduction of every nuance and subtlety within the audio signal, delivering unparalleled clarity and fidelity.
In professional recording and mixing settings, where the accuracy of sound reproduction is paramount, soffit mount studio monitors serve as indispensable tools for assessing the true sonic characteristics of audio recordings. Their ability to reveal the most minute sonic imperfections and nuances empowers engineers and producers to make informed decisions throughout the production process, from recording and mixing to mastering, resulting in audio productions of exceptional quality and clarity.
TECH SPECS
CTA12 PRO | |
Description: | 3-Way Active Soffit Mount Monitor |

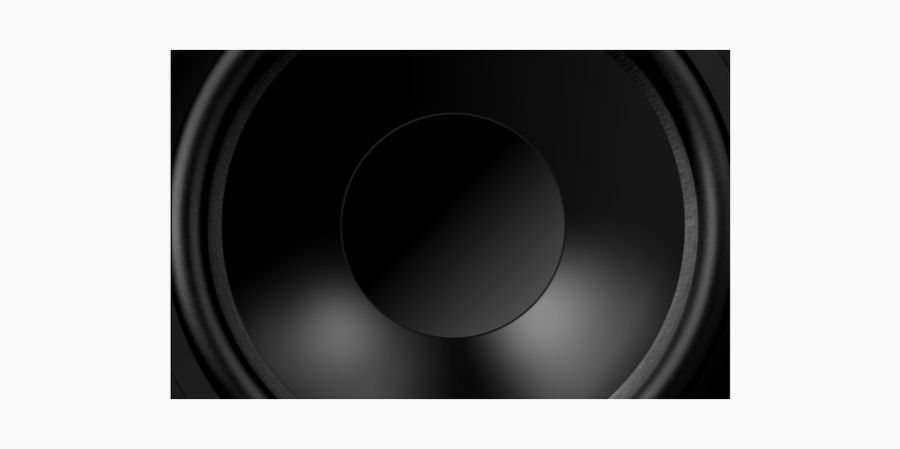

LF Driver: | 12″ x 2 |

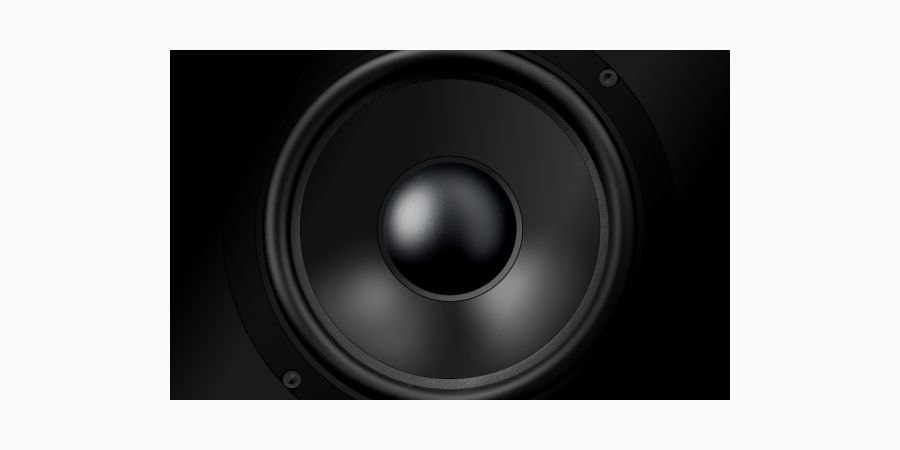

MF Driver: | 6.5″ x 1 |

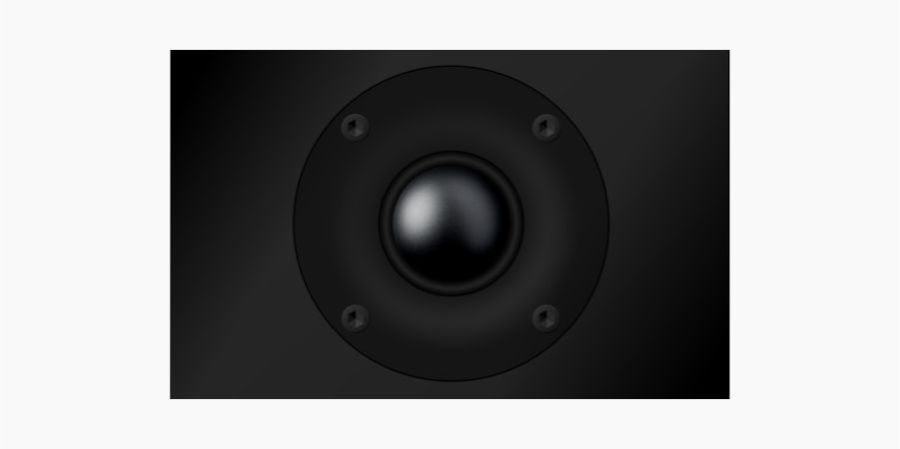

HF Driver: | 1.5″ x 1 |
Amplifier Type: | Class D, SigmaDSP Internal Resolution |
LF Amplifier Power (RMS): | 2 x 200W |
MF Amplifier Power: | 1 x 100W |
HF Amplifier Power: | 1 x 50W |
Frequency Response: | 30Hz-20kHz |
Crossover Frequency: | 300Hz, 3kHz |

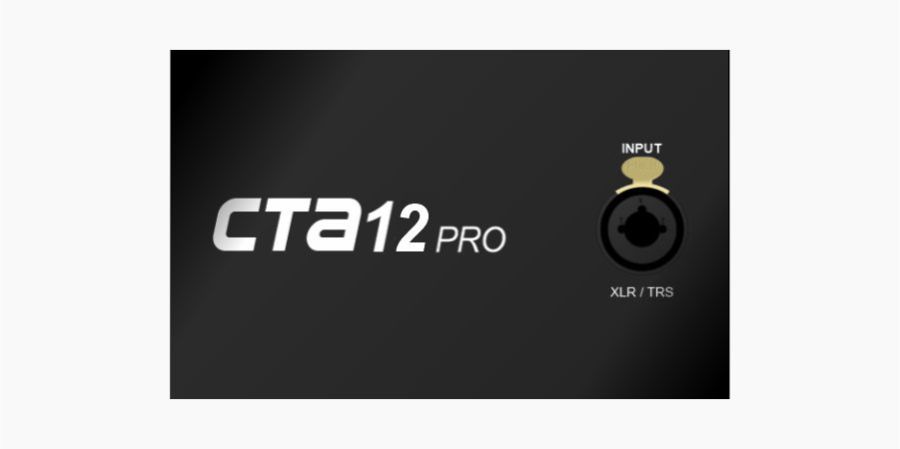

Inputs: | XLR & TRS Combo Jack |
Input Impedance: | 20KHz |
Input Sensitivity: | 2V |

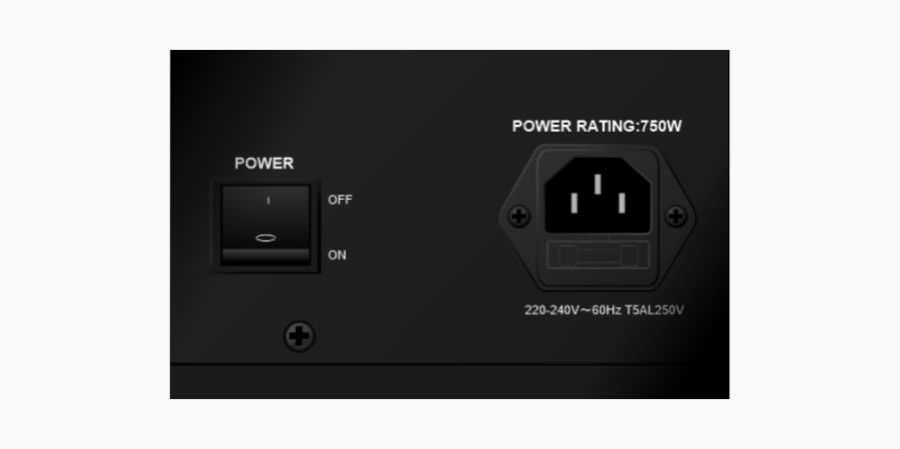

Power Required: | 100-120VAC 60Hz or 220-240VAC 50Hz |
Protection: | Undervoltage,Overtemperature, Clipping,and Short Circuit Protection |
LED Indicators: | On front |
Cabinet: | vinyl-laminated, high acoustic efficient MDF |
Measurement: | W700xH700xD385mm |
