DETAILS

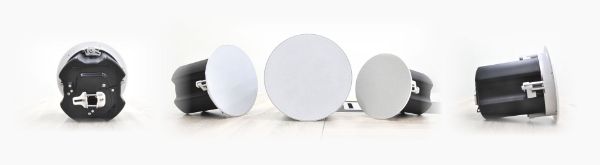

In-Wall/Ceiling Speaker
AS4&AS5&AS6 are made out of high quality metal with fine painting finish - which is for both front grill and backcan, besides the elegant mechanical part, the drivers are making up by well tuned paper cone woofer and natural silkdome tweeter, together with the build in transformer, there is djustment knob in front controlling the voltage.
The AS Series can be built with and without the backcan per your requirements.
TECH SPECS
| Model | AS4 | AS5 | AS6 |
| Description: | In-Wall/Ceiling Speaker | In-Wall/Ceiling Speaker | In-Wall/Ceiling Speaker |
| Frequency Response: | 80-20kHz | 70-20kHz | 60-20kHz |
| Tweeter: | 1"(25mm) silk dome | 1"(25mm) silk dome | 1"(25mm) silk dome |
| Woofer: | 4" Paper Cone | 5.25" Paper Cone | 6.5" Paper Cone |
| Sensitivity: | 86dB/m | 87dB/m | 88dB/m |
| Impedance: | 8Ohms | 8Ohms | 8Ohms |
| Transformer: | 70V/100V 20W/10W/5W/2.5W/8 Ohms | 70V/100V 30W/15W/7.5W/3.8W/8Ohms | 70V/100V 40W/20W/10W/5W/8Ohms |
| Recommended Amp Power: | 20-200 watts per channel | 20-200 watts per channel | 20-200 watts per channel |
| Crossover Frequency: | 3kHz | 3kHz | 3kHz |
| Inputs: | Push style binding posts | Push style binding posts | Push style binding posts |
