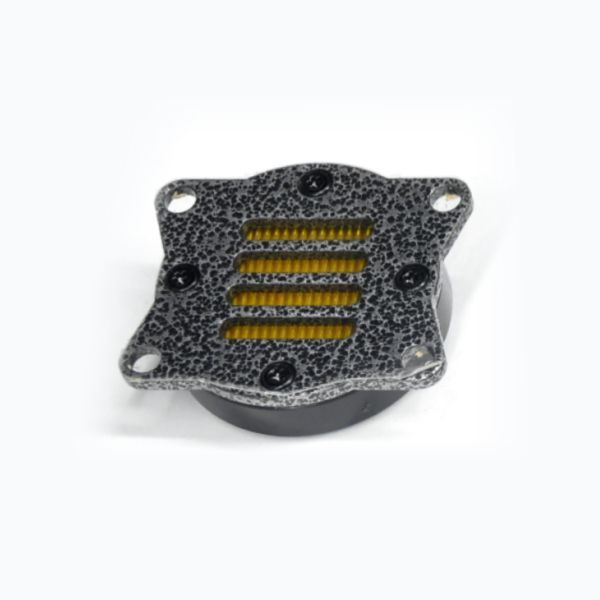

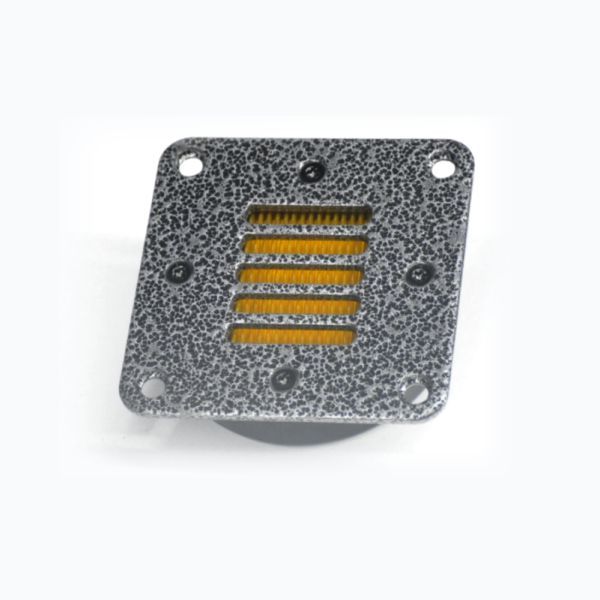

Air Motion Transformer(AMT)

An unfolded AMT tweeter diaphragm provides 8 to13 times the projection area of a traditional 1-inch dome tweeter, enabling our studio monitor to provide a much wider stereo soundstage than traditional designs. At the same time, the AMT provides a very limited vertical dispersion, which helps to reduce reflections from the ceiling and desktop that can cause phase coherence issues.

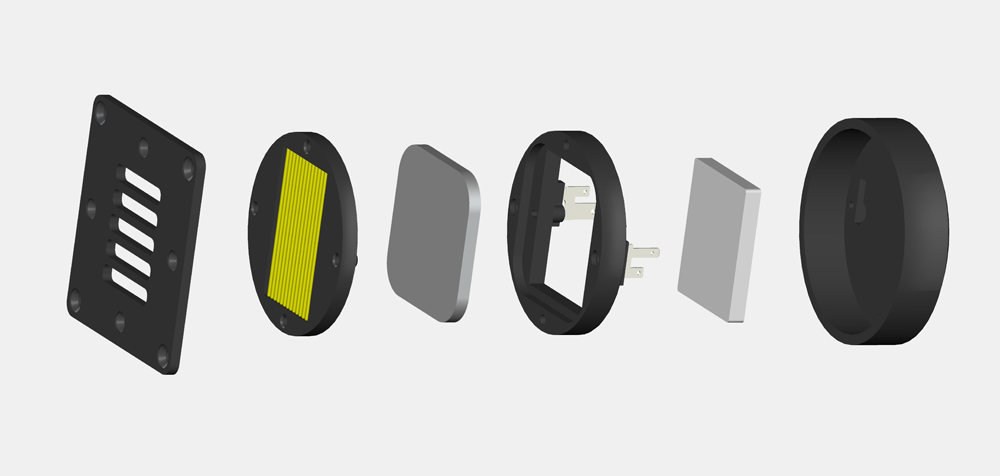

In order to dampen resonance peaks at higher frequencies, conventional dome tweeters are injected with fluid to raise their mass, sacrificing transient response time. By contrast, the custom-designed AMT tweeter uses an incredibly thin, folded Kapton® membrane (<0.01 mm) with an inlayed aluminum circuit functioning as the voice coil, allowing the tweeter to move at the same instant as the electric current. There sulting reactive response time provides marked clarity and superior transient reproduction.

TECH SPECS
