AM5 / AM6 / AM8
HOMEStudio MonitorDETAILS
AM5 / AM6 / AM8

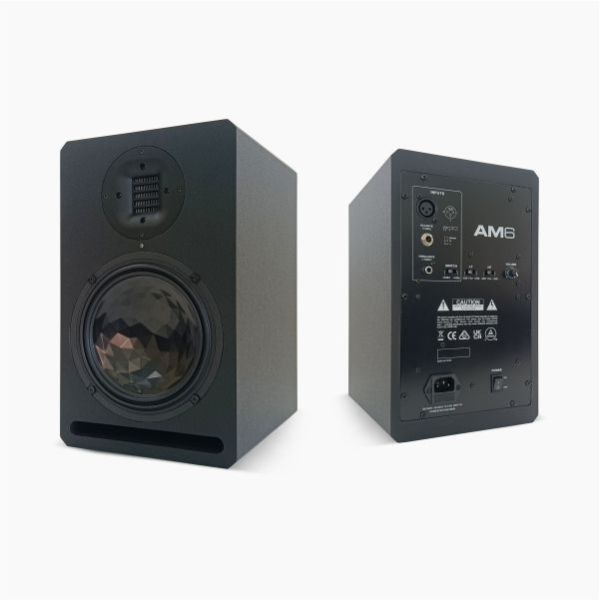

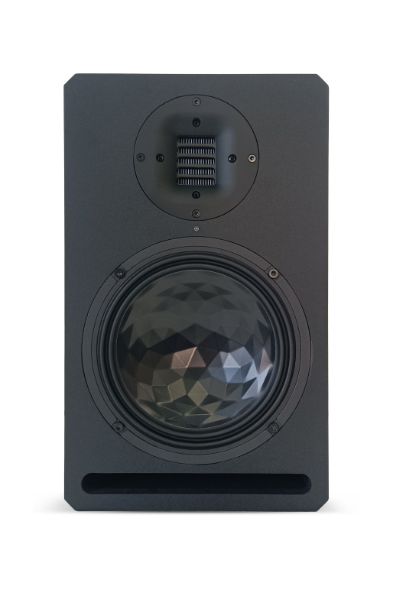

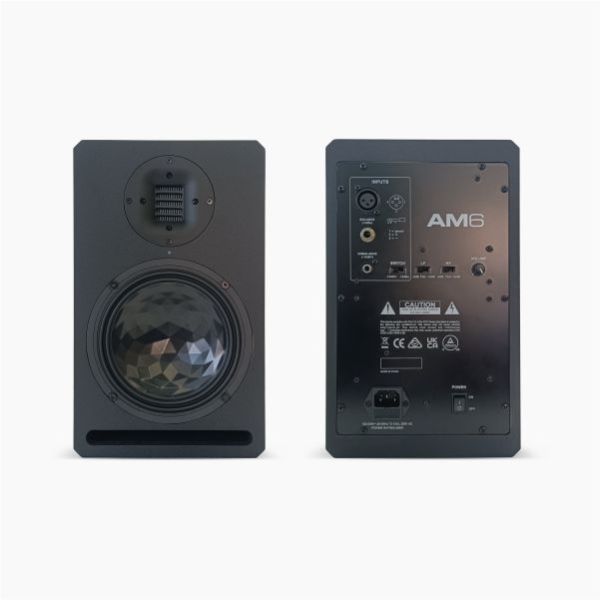

Powerful near-field 2-way studio monitor

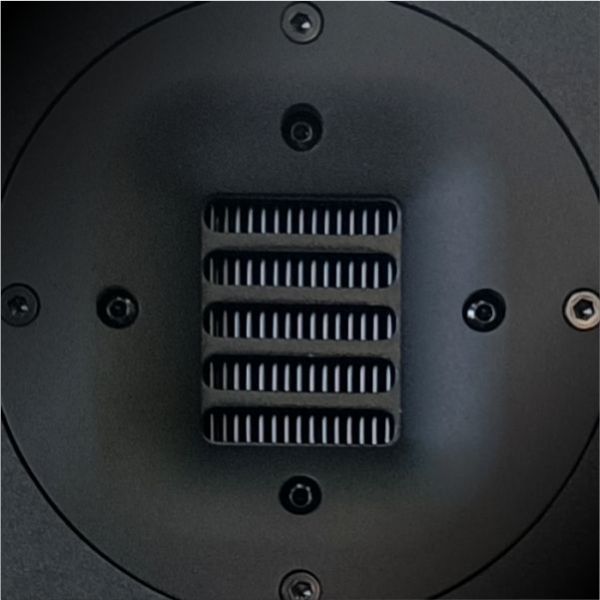

Equipped with Air Motion Transformer, provides pristine and extended high-frequency response up to 20 kHz.
The AMT tweeter is fitted to a precision waveguide, provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
Delivering true high-definition sound, enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters.

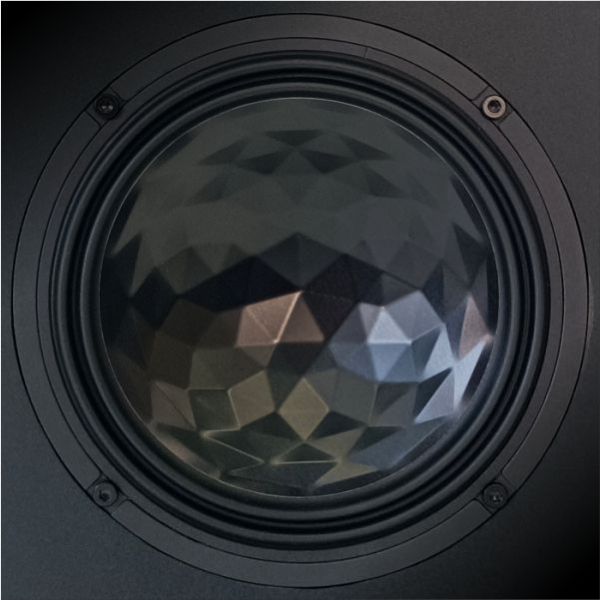

Unique crystal membrane bass driver: more than just an attractive design feature.
The crystal-shaped inverse aluminum dome is joined to the paper cone in a special gluing process to result in the desired sandwich construction. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics.
TECH SPECS
AM5 | AM6 | AM8 | |
Description: | 2-Way Active Studio Monitor | 2-Way Active Studio Monitor | 2-Way Active Studio Monitor |
Woofer:: | 5.25-inch crystal-shaped | 6.5-inch crystal-shaped | 8-inch crystal-shaped |
inverse aluminum dome | inverse aluminum dome | inverse aluminum dome | |
Tweeter (AMT): | Diaphragm area:7.4 in² (4774 mm²) | Diaphragm area:7.4 in² (4774 mm²) | Diaphragm area:7.4 in² (4774 mm²) |
Equiv.Diaphragm:3" (76 mm) | Equiv.Diaphragm:3" (76 mm) | Equiv.Diaphragm:3" (76 mm) | |
Frequency Response: | 45 Hz - 20kHz | 45Hz-20kHz | 33 Hz - 20 kHz |
Crossover Frequency: | 2.8KHz | 2.8 kHz | 2.6 kHz |
Peak SPL at 1m per pair: | 108dB | 108dB | 108dB |
Woofer Amplifier Power: | 100W RMS | 100W RMS | 200W RMS |
Tweeter Amplifier Power: | 80W RMS | 80W RMS | 80W RMS |
Woofer Impedance: | 4 ohm | 4 ohm | 4 ohm |
Tweeter Impedance: | 6 ohm | 6 ohm | 6 ohm |

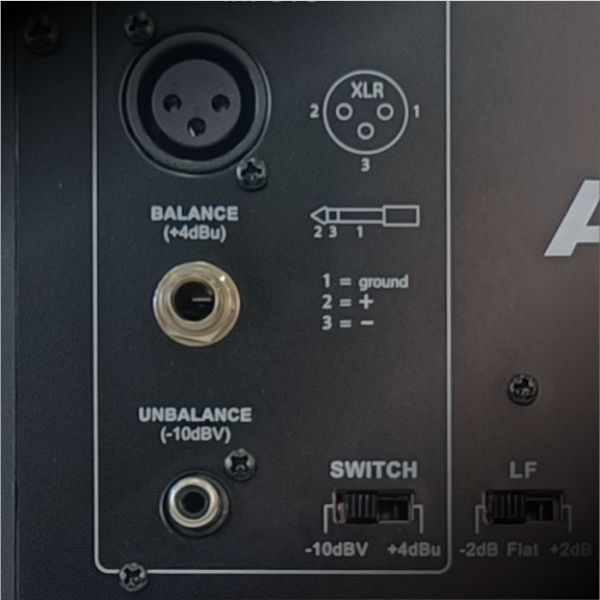

Inputs: | 10.XLR,TRS,RCA | 10.XLR,TRS,RCA | 10.XLR,TRS,RCA |
Amplifiers Type: | Class D,SigmaDSP | Class D,SigmaDSP | Class D,SigmaDSP |
Internal Resolution | Internal Resolution | Internal Resolution | |
Input Sensitivity: | Switchable +4dBu / -10dBv | Switchable +4dBu / -10dBv | Switchable +4dBu / -10dBv |

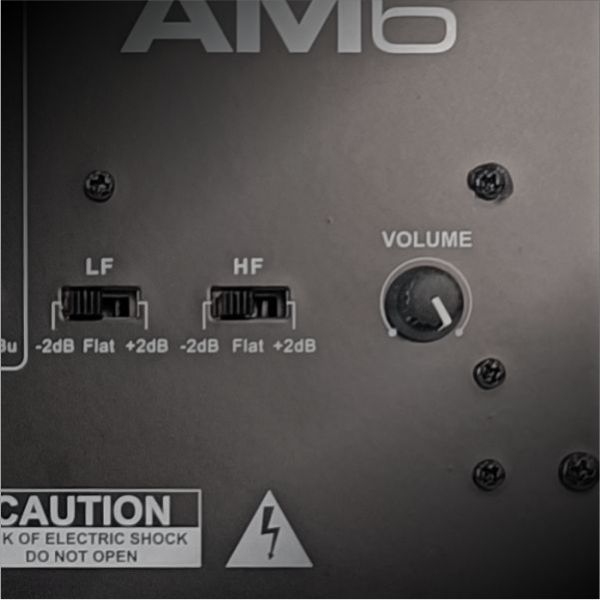

HF Trim Switch: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
LF Trim Switch: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
LED Indicators: | On Front | On Front | On Front |

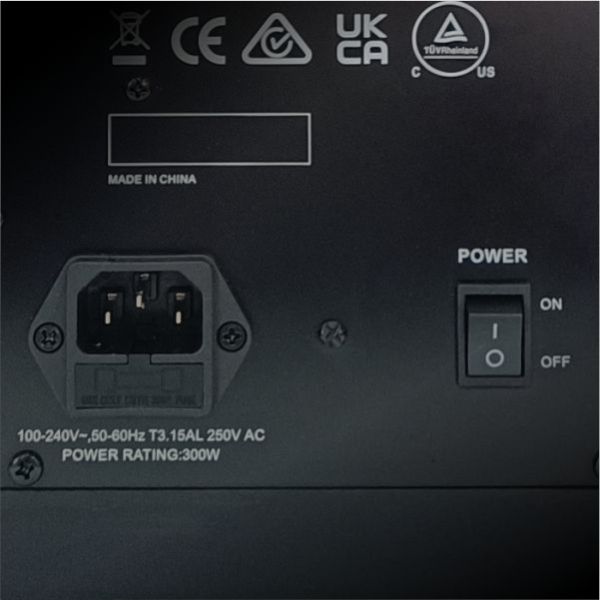

Power Required: | 100-240VAC 50/60Hz | 100-240VAC 50/60Hz | 100-240VAC 50/60Hz |
Cabinet: | Vinyl-laminated, High Acoustic Efficient MDF | Vinyl-laminated, High Acoustic Efficient MDF | Vinyl-laminated, High Acoustic Efficient MDF |
Measurements: | W180Hx300xD210mm | W190xH315xD230mm | W260xH398xD285mm |
