AX5 / AX6 / AX8
HOMEStudio MonitorDETAILS

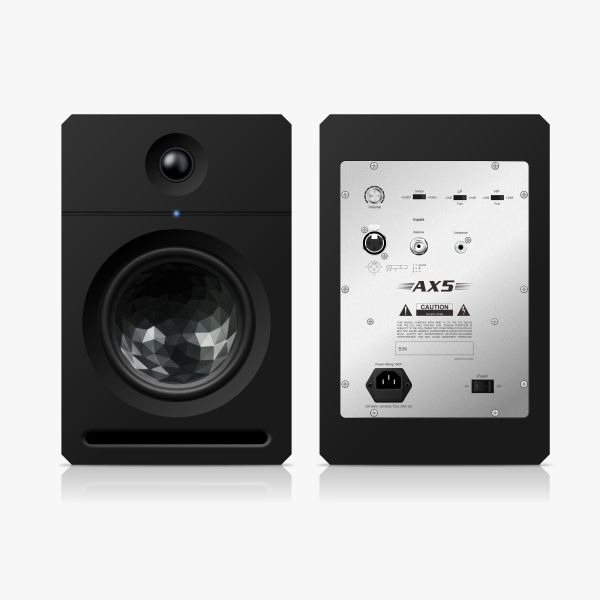

AX5 / AX6 / AX8
Powerful near-field 2-way studio monitor
AX series produces a level of detail and sensitivity that reveals things you didn’t know in your music before. It translates your mix in a way that feels natural and accurate without the fatigue that other monitors can bring after long hours at the studio desk.

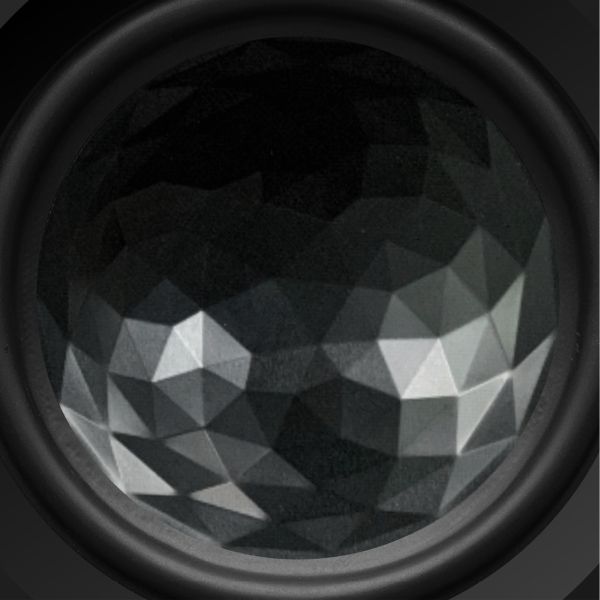

Unique crystal membrane bass driver: more than just an attractive design feature.
The crystal-shaped inverse aluminum dome is joined to the paper cone in a special gluing process to result in the desired sandwich construction. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics.
TECH SPECS
AX5 | AX6 | AX8 | |
Description: | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor |
LF Driver: | 5.25" | 6.5" | 8´´ |

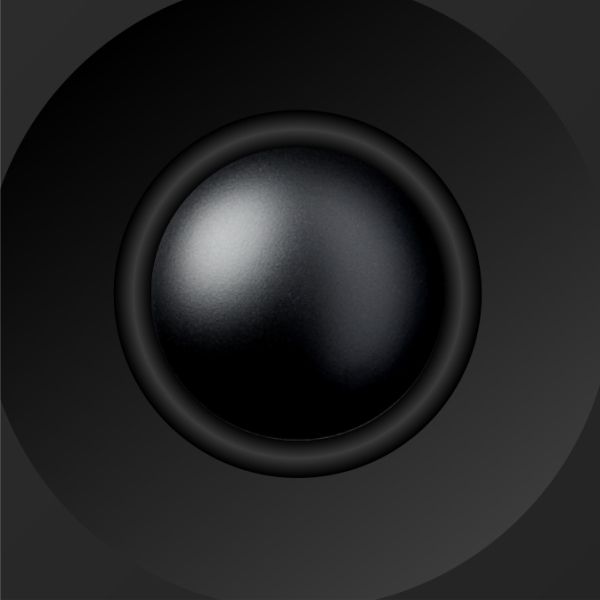

HF Driver: | 1.5´´ silk dome tweeter | 1.5´´ silk dome tweeter | 1.5´´ silk dome tweeter |
Frequency Response: | 45 Hz - 20 kHz | 39 Hz - 20 kHz | 33 Hz - 20 kHz |
Crossover Frequency: | 2.8KHz | 2.6KHz | 2.6KHz |
Amplifiers Type: | Class D | Class D | Class D |
LF Power AMP: | 100W RMS | 150W RMS | 200W RMS |
HF Power AMP: | 50W RMS | 50W RMS | 50W RMS |

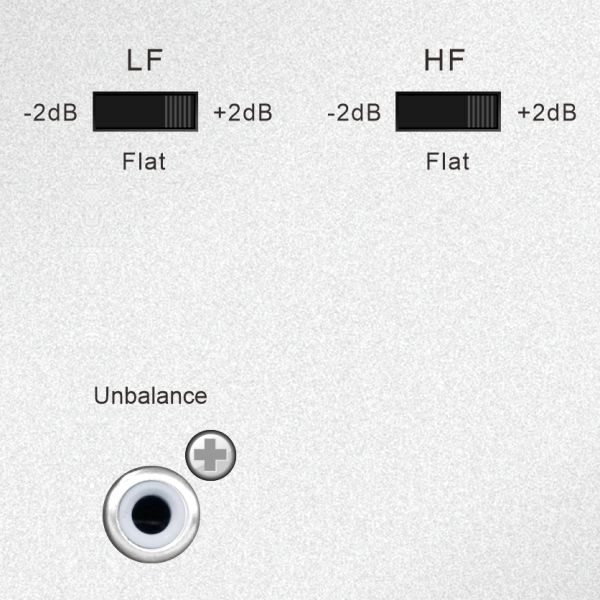

LF Trim: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
HF Trim: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
Sensitivity: | +4dBu, -10dBv | +4dBu, -10dBv | +4dBu, -10dBv |

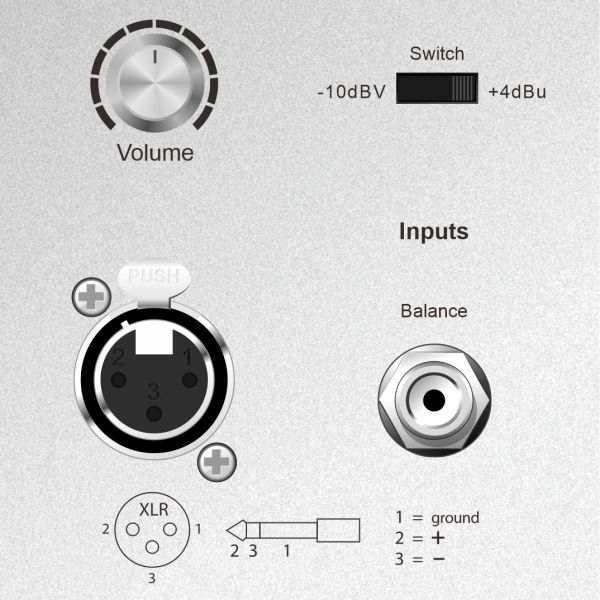

Input type: | 1 xXLR, 1xTRS, 1 x RCA | 1 xXLR, 1xTRS, 1 x RCA | 1 xXLR, 1xTRS , 1xRCA |

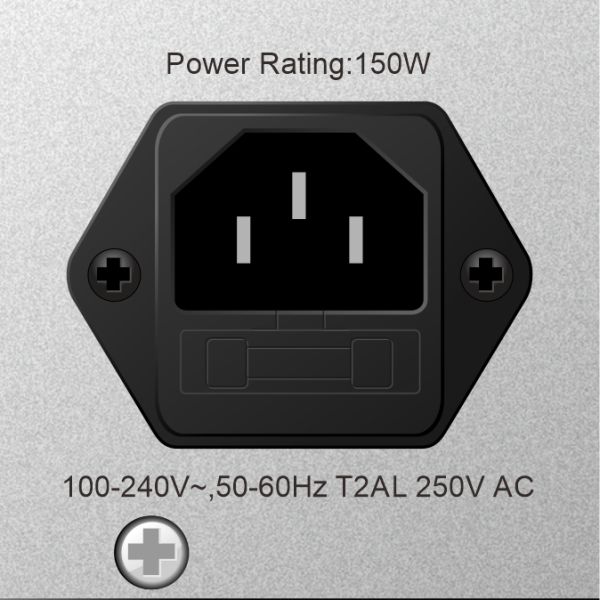

Voltage: | 100-240V~, 50/60Hz | 100-240V~, 50/60Hz | 100-240V, 50/60Hz |
Measurements: | W190*H290*D230mm | W220*H335*D260mm | W260*H398*D285mm |
