X6D / X8D / X10D
HOMEStudio MonitorDETAILS
X6D / X8D / X10D
Category
Time
Update View
DETAILS

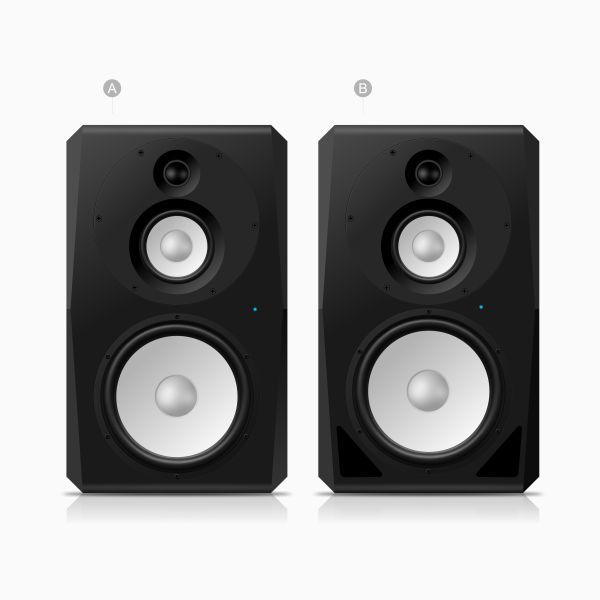

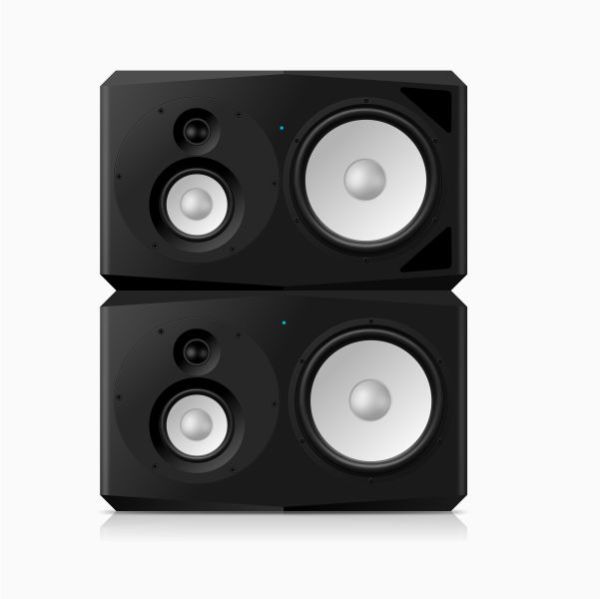

3-Way Active Studio Monitor Speaker
The new thunderous X6D / X8D / X10D 3-way studio monitor takes music and sound creativity to a whole new industry-level. A tri-amp monitor ingeniously built for those needing to hear the depths of their productions clearly on every frequency range.
TECH SPECS
| X6D | X8D | X10D | |
| Description: | 3-Way Active Studio Monitor Speaker | 3-Way Active Studio Monitor Speaker | 3-Way Active Studio Monitor Speaker |

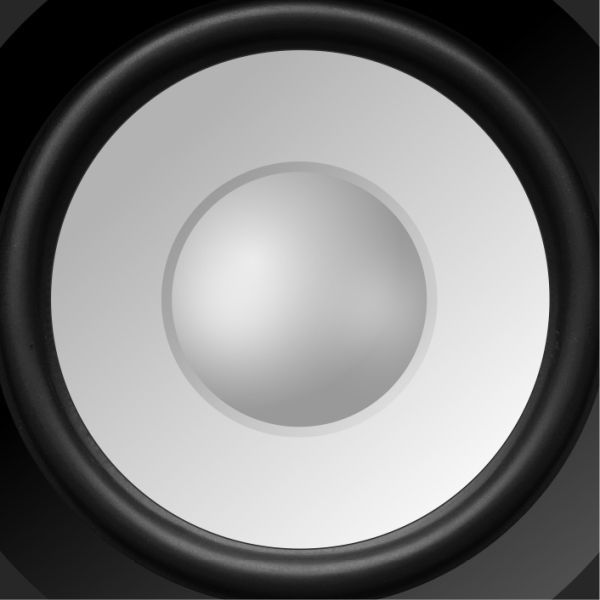

| LF Driver: | 6´´ | 8´´ | 10´´ |
| MF Driver: | 4" | 4" | 4" |

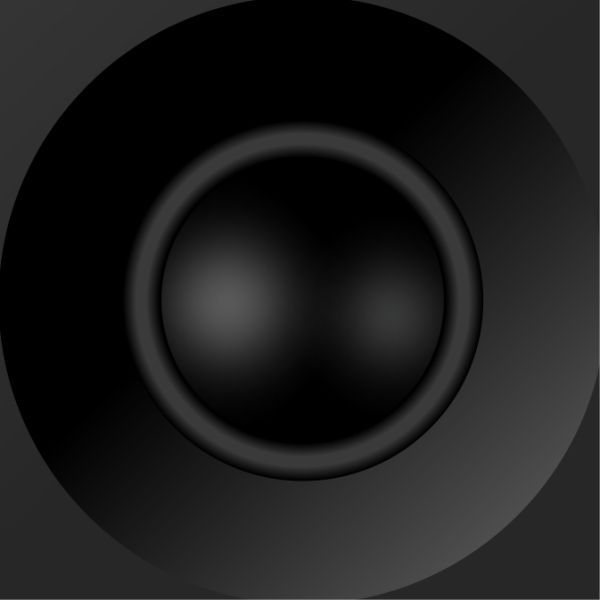

| HF Driver: | 1´´ silk dome tweeter | 1´´ silk dome tweeter | 1´´ silk dome tweeter |
| Frequency Response: | 45Hz - 20 kHz | 40Hz - 20 kHz | 35 Hz - 20 kHz |
| Crossover Frequency: | Low-Mid: 450Hz, Mid-High: 3.9KHz | Low-Mid: 450Hz, Mid-High: 3.9KHz | Low-Mid: 450Hz, Mid-High: 3.9KHz |
| LF Power AMP: | 100W Class D | 100W Class D | 100W Class D |
| MF Power AMP: | 50W Class D | 50W Class D | 50W Class D |
| HF Power AMP: | 30W Class D | 30W Class D | 30W Class D |

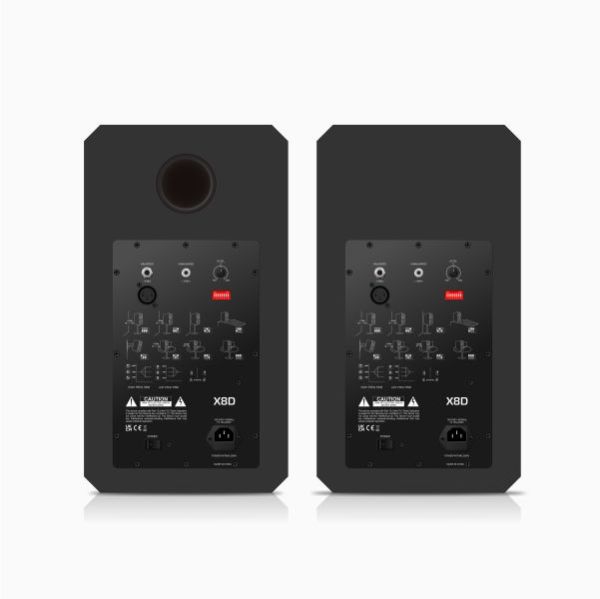

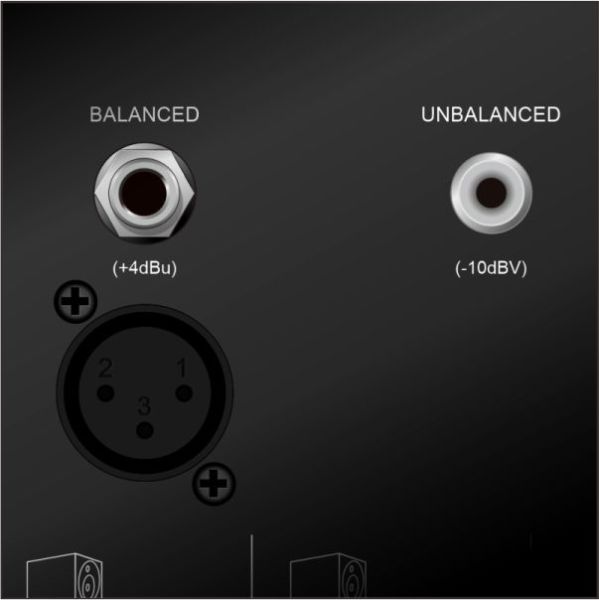

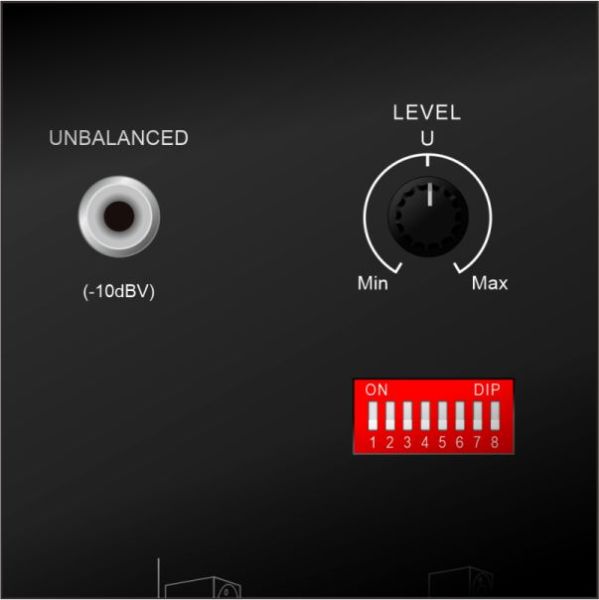

| Input connections: | 1 x XLR panel socket, 3-pin (balanced) | 1 x XLR panel socket, 3-pin (balanced) | 1 x XLR panel socket, 3-pin (balanced) |
| 1 x RCA socket (unbalanced) | 1 x RCA socket (unbalanced) | 1 x RCA socket (unbalanced) | |
| 1 x 1/4" jack socket (balanced) | 1 x 1/4" jack socket (balanced) | 1 x 1/4" jack socket (balanced) | |
| Input impedance: | 20kΩ (balanced), 10kΩ (unbalanced) | 20kΩ (balanced), 10kΩ (unbalanced) | 20kΩ (balanced), 10kΩ (unbalanced) |
| Input sensitivity: | 320 mV pink noise for 100 dB SPL in 1m distance (volume control @ 100%) | 320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%) | 320 mV pink noise for 112 dB SPL in 1m distance (volume control @ 100%) |

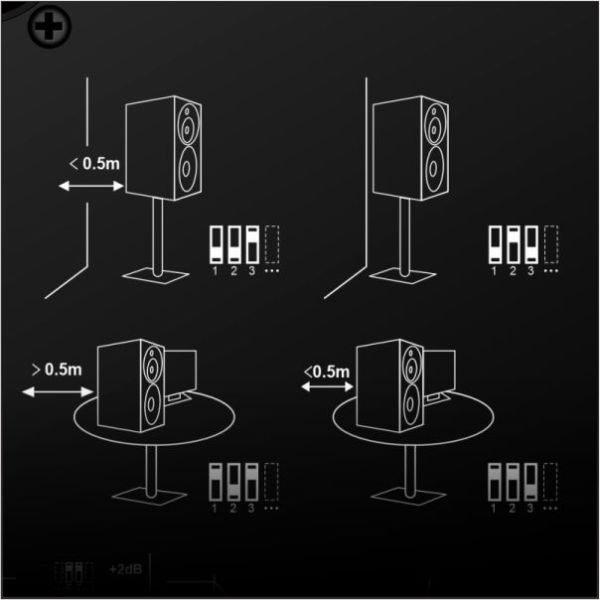

| EQ settings: | Free space (on stands, away from walls) | Free space (on stands, away from walls) | Free space (on stands, away from walls) |
| On stands, within 0.5 meters of a wall | On stands, within 0.5 meters of a wall | On stands, within 0.5 meters of a wall | |
| On stands, against a wall | On stands, against a wall | On stands, against a wall | |
| Meter Bridge | Meter Bridge | Meter Bridge | |
| Wall Mount | Wall Mount | Wall Mount | |
| On a desk, away from walls | On a desk, away from walls | On a desk, away from walls | |
| On a desk, within 0.5 meters of a wall | On a desk, within 0.5 meters of a wall | On a desk, within 0.5 meters of a wall | |
| On a desk, against a wall | On a desk, against a wall | On a desk, against a wall | |
| Ambient conditions: | Temperature range (0℃-40℃) | Temperature range (0℃-40℃) | Temperature range (0℃-40℃) |
| Relative humidity (20%-80%, non-condensing) | Relative humidity (20%-80%, non-condensing) | Relative humidity (20%-80%, non-condensing) | |
| Protection: | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse |

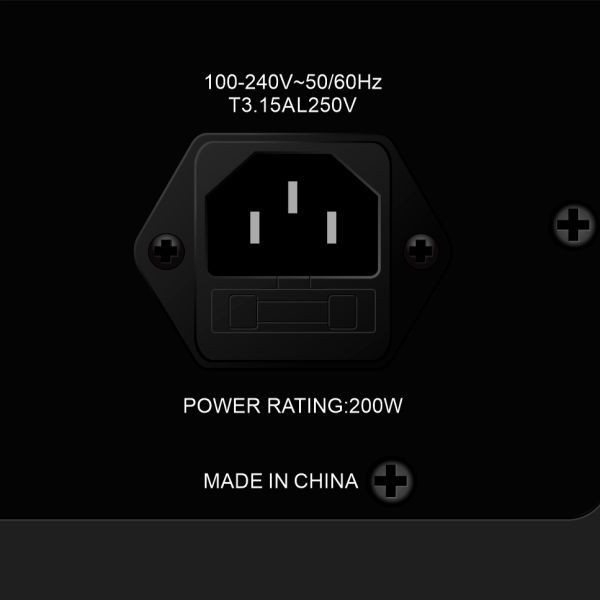

| Operating supply voltage: | 100--240V ~ 50/60Hz | 100--240V ~ 50/60Hz | 100--240V ~ 50/60Hz |
| Fuse: | 5mm × 20mm, 3.15A, 250V, slow blow | 5mm × 20mm, 3.15A, 250V, slow blow | 5mm × 20mm, 3.15A, 250V, slow blow |
